Variants #

• Available in null and A through E variants:

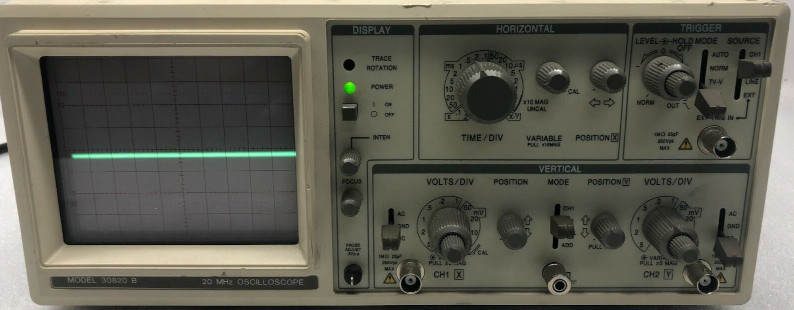

  • The Null variant is confirmed Iwatsu SS-5702.

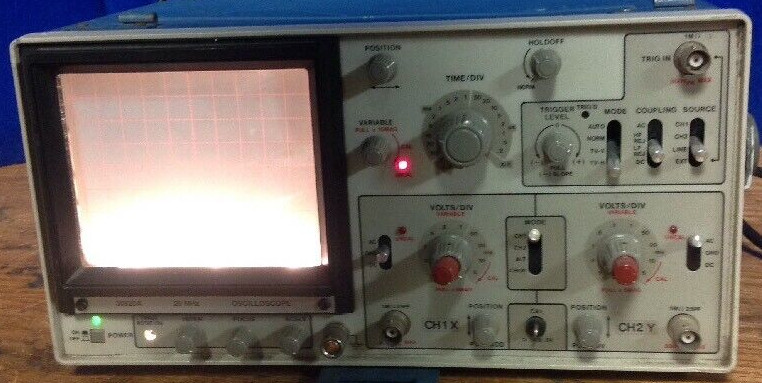

  • The 'A' variant appears to be a Goldstar OS-7020A
  • The 'B' variant appears to be a Goldstar OS-9020A
  • The 'C' variant is unknown, can't find a picture

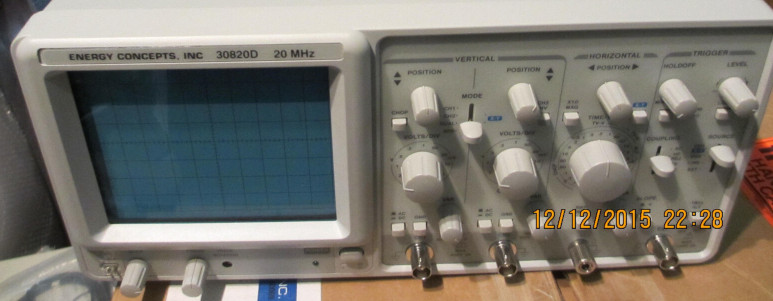

  • The 'D' variant appears to be a GW Instek GOS-622G

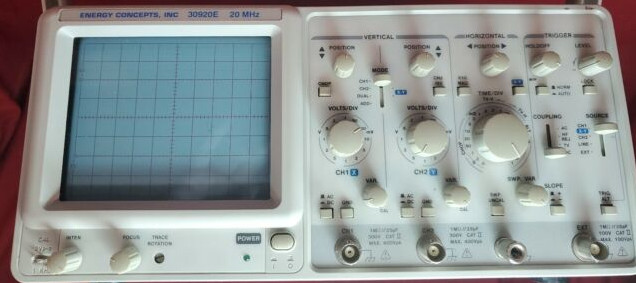

  • The 'E' variant appears identical to the D variant from the front

Notes #

Important! Information listed here is for the null variant.

• 20MHz bandwidth, dual trace, TV-Vertical triggering mode.
• Has XY mode with Z intensity on the back, so serviceable as a sweep gen display with intensity marking.
• Frontend uses 2SK30A-Y in diode connection for negative going input protection, see repair post and 'JFETs Don't Leak' below.
• Frontend uses uPA61AM dual JFET in a TO-78-8 package as source follower with constant current bias, see repair post below.
• Vertical preamp uses HA1127 Quintuple Transistor Array, see 'Quintuple Transistor Arrays and You' below.

Files #

_Recommended Iwatsu SS-5702 Service Manual - Locally Hosted - Iwatsu SS-5702.pdf

Click here for collected file data

Document	File Name	Host	As of	Printed	Modified	Bytes	Format	SHA256
Iwatsu SS-5702 Service Manual	Iwatsu SS-5702.pdf	Locally Hosted	2023JUN15	Unknown	2011FEB12	11,167,422	PDF	fb56b397f5a7e4ed258518b9919cd4de87054ffbec7e464504193ef3a55fa498

Pictures #

• Available in null and A through E variants:

  • The Null variant is confirmed Iwatsu SS-5702.


  • The 'A' variant appears to be a Goldstar OS-7020A


  • The 'B' variant appears to be a Goldstar OS-9020A


  • The 'C' variant is unknown, can't find a picture

  • The 'D' variant appears to be a GW Instek GOS-622G


  • The 'E' variant appears identical to the D variant from the front
