Just a quick note.
Many years ago, in late May of 2015, I decided to use a new-ish feature of Kicad and set up a repository for my own libraries. I'd never mastered git (and I still haven't) so the repo just languished all this time. It may never see glory, but I've updated it with the most recent local backup I have and with any luck I'll be organizing and documenting things in the near future.

Here's the link if you think you'd find it useful.

User Symbols #

These are the schematic symbols for use in EESchema.
The FCE libraries contain my interperetation of common parts, just reduced in size where possible and in an (I hope) consistent style.

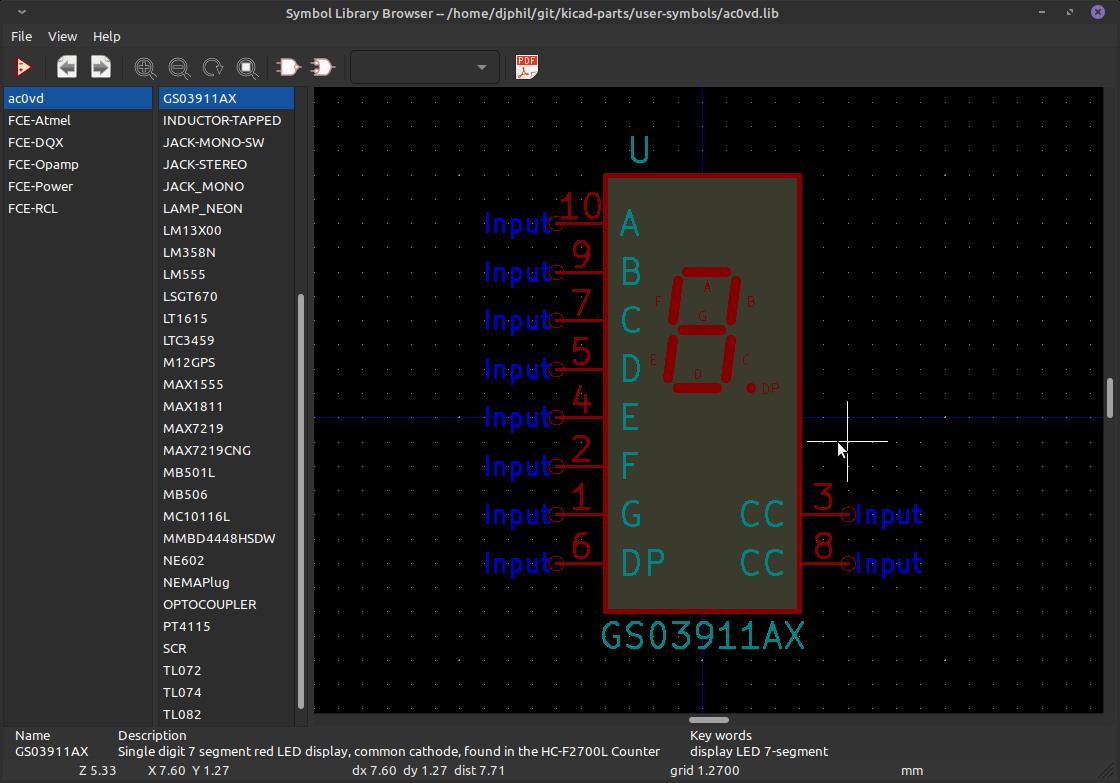

The library named with my amateur radio callsign is a collection of random stuff I've made footprints for over the years.
The accompanying *.dcm files contain the footprint metadata for the respective libraries.

User footprints #

These are the corresponding footprints for Pcbnew.
I believe all the footprints here match to provided symbols, but I need to verify this.

User 3D Models #

This directory is blank in my local copy so doesn't show up in git. I may try to practice Blender by generating some models of my own but it's likely that I'll be referencing what I have to existing models in the Kicad standard library for simplicity

User Templates #

This is here for my benefit. I can start a project with all the library and layout preferences set up how I like. Feel free to use it as an example.

I'd like to come up with a script to put all the footprint names in a text file, or maybe the readme, so they're easily keyword searchable. I'll come back and add that in here in the future if I can. It'll make finding these easier for people who might not want to make these footprints themselves.
